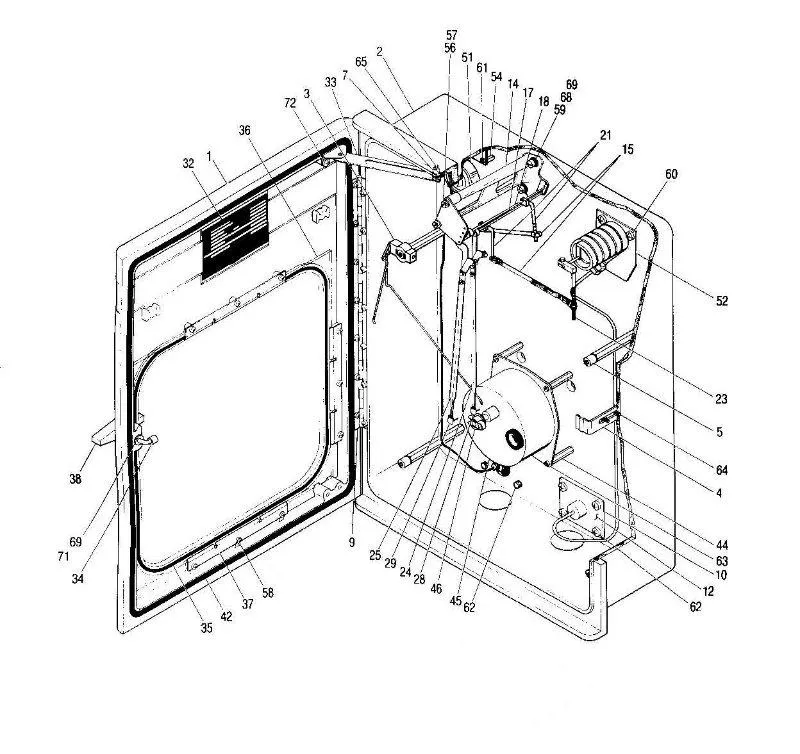

Chart Recorder Parts List and Chart Recorder DiagramChart Recorder PartsITEM#  DESCRIPTION

  1. Recorder door
  2. Recorder case
  3. Pen lifter
  4. Door latch
  5. Chart plate riser
  6. Not shown
  7. Door stop bushing
  8. Not shown
  9. Door hinge
  10. Static pressure connection gasket
  11. Not shown
  12. Static pressure connection
  13. Not shown
  14. Pen mount assembly
  15. Link assembly
  16. Not shown
  17. #1 Pen shaft
  18. #2 Pen shaft
  19. Not shown
  20. Not shown
  21. 45° and 90° driven arm
  22. Not shown
  23. Static drive arm
  24. Pen arm
  25. Pen arm
  26. Not shown
  27. Not shown
  28. #1 Disposable blue pen
  29. #2 Disposable red pen
  30. Not shown
  31. Not shown
  32. Data tag
  33. Door stop assembly
  34. Door latch assembly
  35. Door glass gasket
  36. Door glass
  37. Door glass clip
  38. Door handle
  39. Not shown
  40. Not shown
  41. Not shown
  42. Door gasket
  43. Not shown
  44. Chart drive riser
  45. Chart drive
  46. G190 Chart hub
  47. Not shown
  48. Not shown
  49. Not shown
  50. Not shown
  51. Temperature element
  52. Pressure element
  53. Not shown
  54. Temperature element risers
  55. Not shown
  56. Pen mount top plate screw
  57. Pen mount top plate washer
  58. Door glass clip screw
  59. Pen mount assembly mounting screw
  60. Panhead screw 10-32 x 5/16 SS
  61. Panhead screw 10-32 x 5/16 SS
  62. Panhead screw 10-32 x 5/16 SS
  63. Panhead screw 6-40 x ¼ SS
  64. Panhead screw 10-32 x 5/16 SS
  65. Panhead screw 10-32 x ¾ SS
  66. Not shown
  67. Not shown
  68. Pen mount assembly mounting washer
  69. Pen mount assembly mounting lock washer
  70. Not shown
  71. Door latch assembly washer
  72. Panhead screw 10-32 x 5/16 SS
  73. Not shown
  74. Not shown
  75. Not shown
  76. Not shown
  77. Not shown
